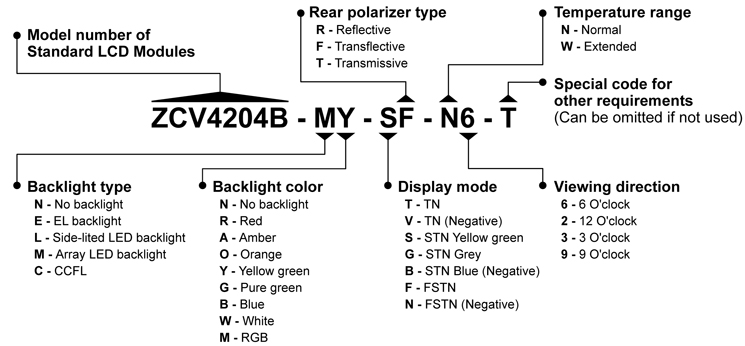

型號
Model No. |
顯示格式
Display Format
Character x Line |
外形尺寸
Module Size
L x W (mm) |
字元尺寸
Character Size
L x W (mm) |
視窗尺寸
Viewing Area
L x W (mm) |
背光源
Backlight Type
L / M / E |
占空比
Duty |
下載
Download |
| ZCV4082M |
8x2 |
58.5 x 32.5 |
2.96 x 5.56 |
37.9 x 16.0 |
L / M / - |
1/16 |
pdf |
| ZCV4082N |
8x2 |
40.0 x 30.4 |
2.8 x 4.54 |
30.0 x 14.0 |
L / - / - |
1/16 |
pdf |
| ZCV4161M |
16x1 |
122.0 x 33.0 |
5.03 x 8.02 |
99.0 x 13.0 |
L / M / - |
1/16 |
pdf |
| ZCG9162M |
16x2 |
65.0 x 27.7 |
2.95 x 5.15 |
61.0 x 15.7 |
L / - / - |
1/16 |
pdf |
| ZCG9162N |
16x2 |
83.0 x 27.4 |
4.15 x 5.90 |
79.0 x 16.1 |
L / - / - |
1/16 |
pdf |
| ZCG9162P |
16x2 |
48.2 x 21.0 |
2.64 x 3.55 |
43.9 x 10.0 |
L / - / - |
1/16 |
pdf |
| ZCG9162Q |
16x2 |
71.0 x 26.0 |
2.95 x 5.15 |
61.0 x 15.8 |
L / - / - |
1/16 |
pdf |
| ZCV4162M |
16x2 |
122.0 x 44.0 |
4.84 x 8.06 |
99.0 x 24.0 |
L / M / - |
1/16 |
pdf |
| ZCV4162N |
16x2 |
80.0 x 36.0 |
2.94 x 4.34 |
64.0 x 13.8 |
L / M / E |
1/16 |
pdf |
| ZCV4162Q |
16x2 |
80.0 x 36.0 |
2.95 x 5.55 |
61.0 x 15.8 |
L / - / - |
1/16 |
pdf |
| ZCV4162T |
16x2 |
80.0 x 36.0 |
3.0 x 5.05 |
64.5 x 16.0 |
L / M / - |
1/16 |
pdf |
| ZCV4164M |
16 x4 |
87.0 x 60.0 |
2.99 x 4.82 |
61.5 x 25.0 |
L / M / - |
1/16 |
pdf |
| ZCV4202M |
20x2 |
116.0 x 37.0 |
3.20 x 5.55 |
83.0 x 18.6 |
L / - / - |
1/16 |
pdf |
| ZCV4202N |
20x2 |
180.0 x 40.0 |
5.9 x 9.5 |
148.0 x 23.0 |
L / M / - |
1/16 |
pdf |
| ZCV4204T |
20x4 |
98.0 x 60.0 |
2.95 x 4.75 |
76.0 x 25.2 |
L / M / - |
1/16 |
pdf |
| ZCV4204M |
20x4 |
146.0 x 62.5 |
4.85 x 9.15 |
122.0 x 42.6 |
L / M / - |
1/16 |
pdf |
| ZCV4242M |
24x2 |
116.0 x 36.0 |
2.7 x 5.55 |
83.0 x 18.5 |
L / M / - |
1/16 |
pdf |
| ZCV4402M |
40x2 |
182.0 x 33.5 |
3.20 x 5.55 |
154.0 x 15.8 |
L / - / - |
1/16 |
pdf |
| ZCV4402N |
40x2 |
186.2 x 34.5 |
3.25 x 5.45 |
153.5 x 16.5 |
- / M / - |
1/16 |
pdf |
| ZCV4404M |
40x4 |
190.0 x 54.0 |
2.78 x 4.89 |
147.0 x 29.5 |
- / M / - |
1/16 |
pdf |
|
