Standard 7-Segment Series / Standard Alphanumeric Series

Display Format
(No. of Digits)		 Other
Description		 Viewing Area
L x W (mm)		 Digit Height
(mm)		 Glass Size
L x W (mm)		 Duty Connector
Rubber / Pin		 Model
No.
2 2Dp 21.10 x 16.00 12.70 28.00 x 30.50 static R / P S5080
3 1Dp 25.40 x 9.34 6.86 27.94 x 14.48 1/3 R / P S5957
3 1/2 Icons + 1Col + 3Dp 47.00 x 18.80 12.70 50.80 x 30.50 static R / P S5018
3 1/2 Icons + 1Col + 3Dp 47.00 x 18.80 12.70 50.80 x 30.50 static R / P S5039
3 1/2 Icons + 3Dp 45.80 x 13.30 10.00 50.80 x 24.10 static R / P S5063
3 1/2 Icons + 1Col + 3Dp 44.80 x 11.78 8.90 50.80 x 22.80 static R / P S5094
3 1/2 Icons + 1Col + 3Dp 46.70 x 18.80 12.70 50.80 x 30.50 static R / P S5096
4 1Col + 3Dp 47.00 x 18.80 12.70 50.80 x 30.50 static R / P S5026
4 1Col + 3Dp 62.25 x 22.90 17.78 69.85 x 38.10 static R / P S5057
4 Icons + 1Col + 3Dp 47.00 x 18.80 12.70 50.80 x 30.50 static R / P S5126
4 1Col + 3Dp 87.50 x 31.75 25.40 93.98 x 45.72 static R / P S5978
4 1/2 Icons + 2Col + 4Dp 47.00 x 18.80 10.16 50.80 x 30.50 static R / P S5065
4 1/2 Icons + 4Dp 47.00 x 18.80 10.00 50.80 x 30.50 1/3 R / P S5066
5 1Col + 4Dp 75.00 x 24.00 17.80 81.30 x 38.10 static R / P S5044
6 2Col + 5Dp 63.50 x 16.50 12.70 69.80 x 30.50 static R / P S5042
6 2Col + 5Dp 130.81 x 31.75 25.40 137.16 x 45.72 static - / P S5977
8 Icons + 8Dp 64.00 x 14.50 9.00 70.00 x 25.00 1/3 R / P S5971
8 14 segment digit 48.00 x 13.00 7.00 52.00 x 22.00 1/4 R / P S5038

Back to Top

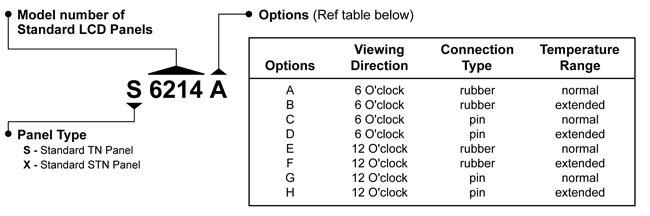

Model Number Notation
